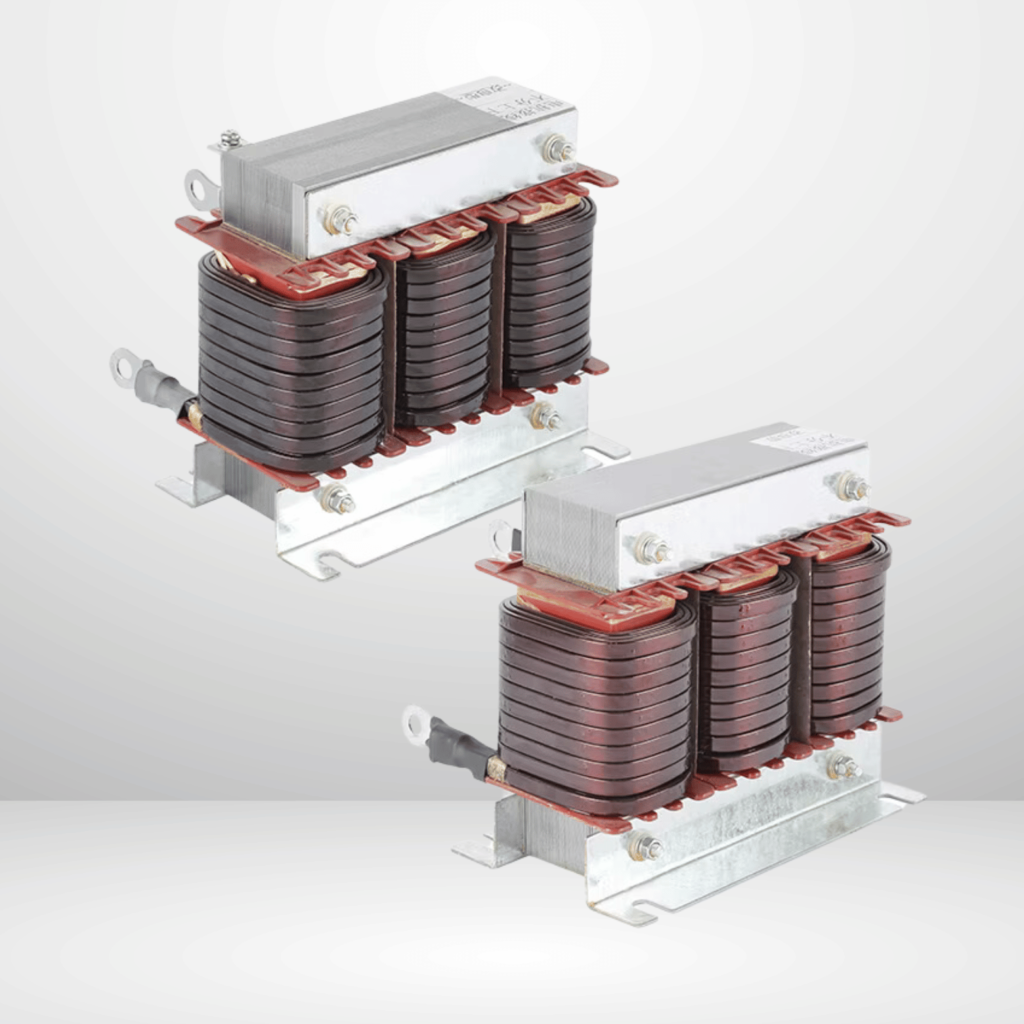

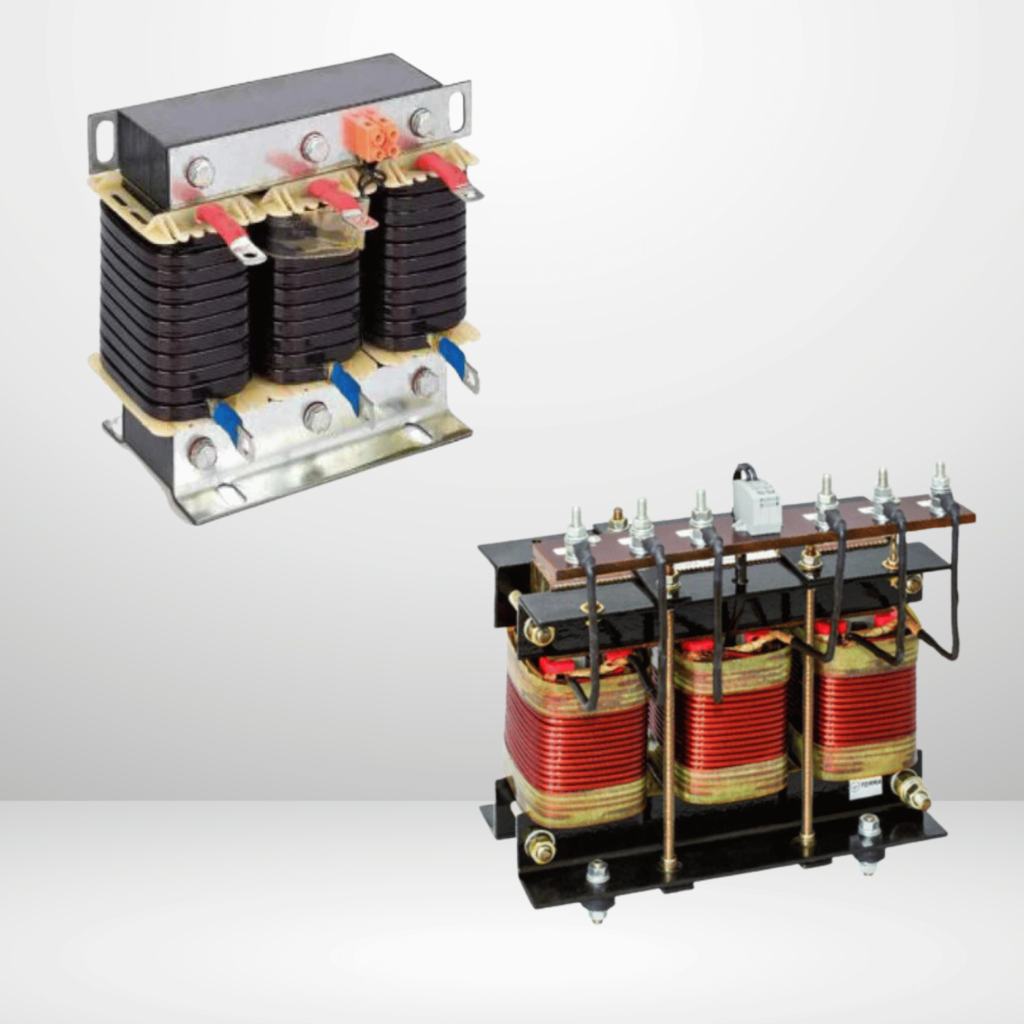

Detuned Filters/Reactors

Brawn Energy Offers highly efficient Detuned reactors. Detuned reactors, also known as detuned filters, are specialized devices used to mitigate harmonic distortion in electrical systems. One of the biggest causes of failures in compensation Power Factor Correction systems is harmonics. If there is an overheating problem in the capacitors in the compensation Power Factor Correction system used in your facility, the capacitors often fail and you have to constantly change capacitors, you should filter the harmonics in your system. For this, passive filtering can be carried out by placing Detuned reactor in front of your capacitors. By connecting the Detuned reactor designed according to the power and voltage values of the capacitors in series with the capacitors, distortions caused by the harmonics can be easily prevented.

Specifications

  • Detuning Factor : 5.67%, 7% and 14%
  • Rating from : 5 kVAr to 100 kVAr single bank
  • Insulation : Class - F (H on demand)
  • Harmonic Linearity: 135%, 150%, 175%, 200% (Above 200% on demand)
  • Material of Winding : Aluminium or Copper as per requirement
  • Over temp. switch - 120°C NC switch

What Are The Benefits?

It eliminates harmonic amplification

It enhances the life of capacitors by reducing voltage and thermal stress due to harmonics.

Prevents the constant nuisance of input fuse blowing or circuit breaker tripping

Reduces over heating of the transformer, busbars, cables, switchgear etc caused due to harmonic amplification.

Reduces the harmonic current in the electrical supply system

Addresses the harmonic problems created by non-linear loads.

Improves Power Factor in harmonic rich environment.
